1405 D

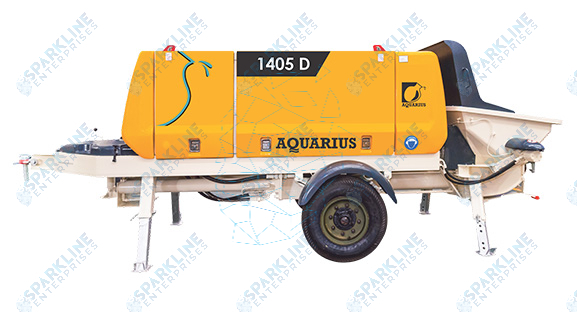

The STATIONARY CONCRETE PUMP – 1405 D is a concrete pump that transfers wet concrete from mixer trucks or hoppers through a pipeline or boom to the placement point.
Concrete pumps are used to place concrete at height on high-rise pours, to reach over obstacles, basements and congested site layouts, and to sustain continuous large-volume slab and foundation pours without relying on manual wheelbarrow transport. Boom and line pumps are standard on virtually every large-scale concrete pour where speed and reach matter.
Sparkline Group supplies, services and rents concrete pumps across Abu Dhabi, Dubai, Sharjah and the wider UAE, including long-reach boom pumps suited to the large-footprint tower and infrastructure pours common across the region.
STATIONARY CONCRETE PUMP – 1405 D is part of our Concrete Pumps range, supplied by Aquarius.
Prime Mover kW 49.
Theoretical Output m3/hr 51 / 35*.
Del. Cylinder Diameter mm 200.
Del. Cylinder Stroke mm 1400.
No. of Strokes per min 19 / 13*.
Hydraulic Transmission Road Side Head Side 1:4.9 1:3.3.
Concrete Pressure bar 61 / 91*.
Concrete Hopper Capacity L 600.
