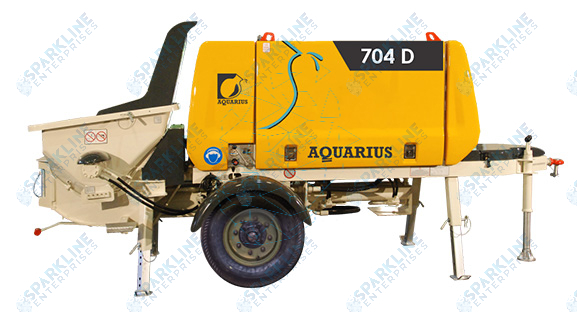

The STATIONARY CONCRETE PUMP – 704 D is a concrete pump that transfers wet concrete from mixer trucks or hoppers through a pipeline or boom to the placement point.
Concrete pumps are used to place concrete at height on high-rise pours, to reach over obstacles, basements and congested site layouts, and to sustain continuous large-volume slab and foundation pours without relying on manual wheelbarrow transport. Boom and line pumps are standard on virtually every large-scale concrete pour where speed and reach matter.
Sparkline Group supplies, services and rents concrete pumps across Abu Dhabi, Dubai, Sharjah and the wider UAE, including long-reach boom pumps suited to the large-footprint tower and infrastructure pours common across the region.
Key Features
Prime Mover kW 49
Theoretical Output m3/hr 35
Del. Cylinder Diameter mm 200
Del. Cylinder Stroke mm 700
No. of Strokes per min 26
Hydraulic Transmission 1:3.3
Concrete Pressure bar 80
Concrete Hopper Capacity L 500
Delivery Distance** Horiz Vert m m 350 90
FAQs
Why does choosing the right STATIONARY CONCRETE PUMP – 704 D matter on a UAE project? An under-specified or poorly maintained stationary concrete pump – 704 d slows a schedule down and is a common cause of on-site incidents, while a correctly specified, well-maintained unit keeps output consistent and meets the safety and quality standards expected on Abu Dhabi and Dubai construction and industrial sites.
How do I get pricing for the STATIONARY CONCRETE PUMP – 704 D? Pricing for the STATIONARY CONCRETE PUMP – 704 D depends on the exact specification and quantity required — submit a quote request through the enquiry form on this page or contact Sparkline Group directly, and our sales team will respond with a formal quotation.
Is the STATIONARY CONCRETE PUMP – 704 D available for delivery across the UAE and GCC? Yes — Sparkline Group supplies and delivers the STATIONARY CONCRETE PUMP – 704 D to project sites across Abu Dhabi, Dubai, Sharjah and the wider UAE, with support for GCC-wide delivery on request.
Does the STATIONARY CONCRETE PUMP – 704 D meet UAE compliance and safety standards? Yes — the STATIONARY CONCRETE PUMP – 704 D is supplied to meet the safety and quality standards expected on UAE construction and industrial sites, and Sparkline Group's technical team can advise on the certification or documentation your project requires.
